EV Charger Package Offers

#

Our package offers include the charger unit, the electrical installation materials generally required for commissioning, and labor. Every package includes a load balancing solution. If your installation requires a different setup, we provide a custom quotation.



#Charger

Package includes:

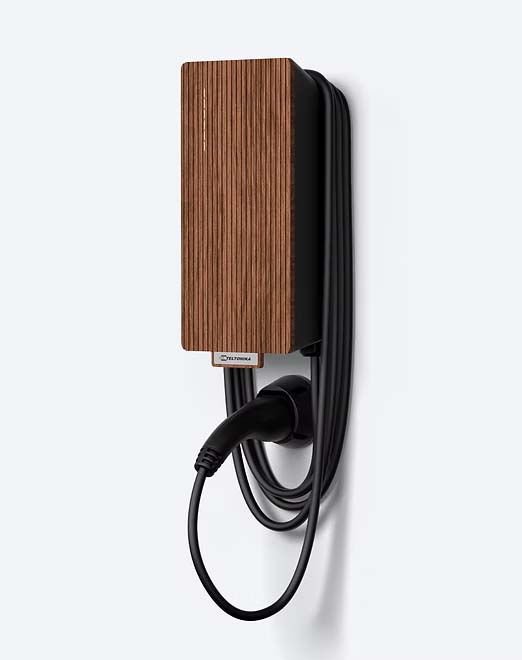

  • Wall-mounted charger with the selected power rating and plastic front panel (anthracite by default unless another color is selected)
  • Current transformer coil(s) and signal wiring
  • Standard heavy-current power cable sized for the charger output and for the installation length included in the package*
  • Circuit breaker
  • Residual current device (RCD / FI relay)
  • Small distribution box for installing protection devices
  • Cable ducting for the installation length included in the package*
  • Installation consumables (screws, connectors, sealants, etc.)
  • Labor including charger mounting, visible cable routing in cable duct between charger, sub-distribution board and main power board, creation of an external charger sub-distribution board, and installer verification measurements
  • Charger configuration and mobile app introduction on one device


Package does not include:


  • Surge protection equipment and accessories if not yet installed in the connected electrical system (available as a custom quote)
  • New grounding electrode installation if the connected electrical system does not have proper PE-N separation and grounding (available as a custom quote after survey)
  • Type B RCD (not required for the chargers included in our packages, but may be mandatory for customer-supplied chargers; supply and installation available by custom quote)
  • Touch protection report or electrical safety inspection report
  • Electrical installation design plan or any permit-required design documentation
  • Any activity related to power capacity expansion if the required network capacity is not available at the installation site
  • New utility meter point creation or standardization (sub-metered setups can be provided by custom quote, e.g. in shared areas of apartment or office buildings)
  • Creation or extension of wired/WiFi network if unavailable at the installation site (separate quote after site survey)
  • Any demolition, construction or other trade work (earthworks, concreting, paving, masonry, plastering, painting, wallpapering, thermal insulation, etc.)
  • Wall chasing for cable routes
  • Routing in existing conduits, ducts or tunnels is available only by custom quote due to typically higher labor and different material requirements


*Installation length included in the package: the cable length installed from the main electrical board to the charger connection point. The straight-line distance is usually shorter than the actual routing length. Example: if the main board is on one side of the wall and installation is done behind the wall, it may be less than 1 meter. If installation is on a wall 2 meters opposite the board, even the shortest practical routing typically requires about 5 meters of cable (up the wall, across the ceiling, then down the wall).
